Gas pipe fittings are essential components in any gas piping system, ensuring the safe and efficient flow of gas from the source to the point of use. Whether you're a professional plumber, a DIY enthusiast, or simply curious about how gas systems work, understanding the various types of gas pipe fittings and their applications is crucial. This guide will walk you through the different types of gas pipe fittings, their uses, and important considerations for installation and maintenance.
Understanding Gas Pipe Fittings
Gas pipe fittings are designed to connect, control, and direct the flow of gas through a piping system. They come in various shapes, sizes, and materials, each serving a specific purpose. The choice of fitting depends on the type of gas, the pressure of the system, and the specific requirements of the installation.

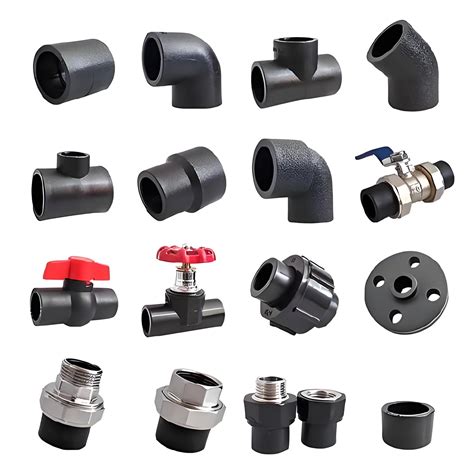

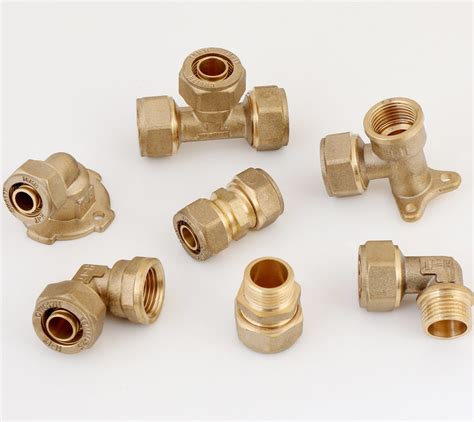

Types of Gas Pipe Fittings
Gas pipe fittings can be categorized into several types based on their function and design. Here are the most common types:
Elbows
Elbows are used to change the direction of the gas flow. They come in various angles, with 45-degree and 90-degree elbows being the most common. Elbows are essential for navigating around obstacles and fitting pipes into tight spaces.
Tees
Tees are used to connect three pipes, allowing gas to flow in multiple directions. They are available in equal and reducing sizes, depending on the flow requirements. Tees are commonly used in branching pipelines and distribution systems.

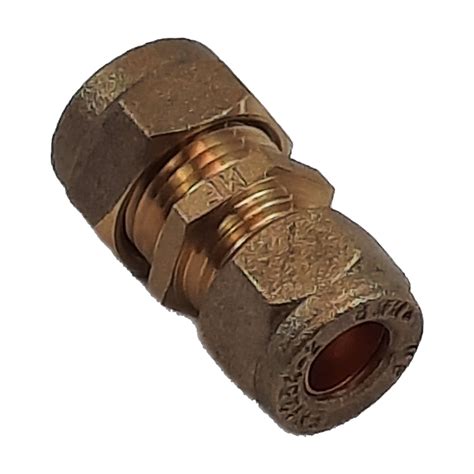

Couplings
Couplings are used to connect two pipes of the same size. They are essential for extending pipelines and repairing damaged sections. Couplings can be either compression or slip-fit, depending on the installation method.
Unions
Unions are similar to couplings but allow for easy disassembly and reassembly. They are useful in applications where frequent maintenance or adjustments are required. Unions consist of three parts: a nut, a female end, and a male end.
Reducers
Reducers are used to connect pipes of different sizes. They come in concentric and eccentric types, depending on the alignment of the pipes. Reducers are essential for transitioning between different pipe sizes in a system.
Caps and Plugs
Caps and plugs are used to seal the ends of pipes. Caps are used for female threads, while plugs are used for male threads. They are essential for preventing gas leaks and ensuring the integrity of the piping system.
Valves
Valves are used to control the flow of gas in a piping system. They come in various types, including gate valves, ball valves, and check valves. Each type of valve serves a specific purpose, such as regulating flow, isolating sections of the pipeline, or preventing backflow.
Materials for Gas Pipe Fittings
The choice of material for gas pipe fittings is crucial for ensuring the safety and longevity of the piping system. Common materials include:
- Stainless Steel: Known for its durability and resistance to corrosion, stainless steel is a popular choice for gas pipe fittings. It is suitable for high-pressure and high-temperature applications.
- Brass: Brass is a cost-effective material that offers good corrosion resistance. It is commonly used in low-pressure gas systems.
- Copper: Copper is known for its excellent thermal conductivity and corrosion resistance. It is often used in residential gas piping systems.
- Cast Iron: Cast iron is a strong and durable material that is resistant to high temperatures. It is commonly used in industrial gas piping systems.
- PVC: PVC is a lightweight and cost-effective material that is resistant to corrosion. It is suitable for low-pressure gas systems and is often used in outdoor applications.
Important Considerations for Gas Pipe Fittings
When selecting and installing gas pipe fittings, several important considerations must be taken into account to ensure the safety and efficiency of the system.
Pressure Ratings
Gas pipe fittings must be rated for the pressure of the system in which they will be used. Using fittings with insufficient pressure ratings can lead to leaks, failures, and potential hazards. Always check the pressure rating of the fittings before installation.
Temperature Ratings
The temperature of the gas can affect the performance and longevity of the fittings. Ensure that the fittings are rated for the temperature range of the gas in the system. High-temperature applications may require special materials or coatings.
Compatibility
Gas pipe fittings must be compatible with the type of gas being used. Different gases have different chemical properties that can affect the materials used in the fittings. Always check the compatibility of the fittings with the specific gas in the system.
Installation Techniques
Proper installation techniques are crucial for ensuring the safety and efficiency of the gas piping system. Here are some key installation tips:
- Use the correct tools and equipment for installation.
- Follow manufacturer guidelines for installation and maintenance.
- Ensure that all connections are tight and secure.
- Use thread sealant or tape to prevent leaks.
- Test the system for leaks after installation.
🔧 Note: Always follow local codes and regulations when installing gas pipe fittings. Improper installation can lead to serious safety hazards.
Maintenance of Gas Pipe Fittings
Maintaining gas pipe fittings is essential for ensuring the longevity and safety of the piping system. Regular inspections and maintenance can help prevent leaks, failures, and other issues. Here are some key maintenance tips:
- Inspect fittings regularly for signs of wear, corrosion, or damage.
- Replace any damaged or worn fittings immediately.
- Clean fittings to remove any debris or buildup.
- Lubricate moving parts, such as valves, to ensure smooth operation.
- Test the system for leaks regularly.
🛠️ Note: Always turn off the gas supply before performing any maintenance on the piping system. This ensures safety and prevents accidents.
Common Issues with Gas Pipe Fittings
Despite proper installation and maintenance, issues can still arise with gas pipe fittings. Here are some common problems and their solutions:
Leaks
Leaks are one of the most common issues with gas pipe fittings. They can be caused by loose connections, damaged fittings, or improper installation. To fix leaks:
- Tighten loose connections.
- Replace damaged fittings.
- Use thread sealant or tape to seal leaks.
Corrosion
Corrosion can weaken gas pipe fittings and lead to failures. It is often caused by exposure to moisture or chemicals. To prevent corrosion:
- Use corrosion-resistant materials.
- Apply protective coatings.
- Regularly inspect and maintain fittings.
Blockages
Blockages can restrict the flow of gas and reduce the efficiency of the system. They are often caused by debris or buildup in the pipes. To clear blockages:
- Use a pipe cleaner or snake to remove debris.
- Flush the system with a cleaning solution.
- Replace any damaged or clogged fittings.
Safety Precautions
Working with gas pipe fittings involves handling hazardous materials and equipment. Always follow these safety precautions to ensure your safety and the safety of others:
- Wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and protective clothing.
- Work in a well-ventilated area to prevent the accumulation of gas.
- Use non-sparking tools to avoid igniting the gas.
- Keep a fire extinguisher nearby in case of emergencies.
- Follow all local codes and regulations for gas piping systems.
⚠️ Note: Never smoke or use open flames near gas pipe fittings or gas piping systems. This can lead to explosions and fires.
Gas pipe fittings are essential components in any gas piping system, ensuring the safe and efficient flow of gas. Understanding the different types of fittings, their materials, and important considerations for installation and maintenance is crucial for ensuring the safety and longevity of the system. By following proper installation techniques, regular maintenance, and safety precautions, you can ensure that your gas piping system operates efficiently and safely.
