In the realm of electrical connections, the 5 15P plug stands out as a crucial component for various applications. This plug, commonly known as a 5-15P, is a three-prong plug designed to fit into a standard 15-amp, 125-volt outlet. Understanding the specifics of the 5 15P plug and its uses can help ensure safe and efficient electrical connections in both residential and commercial settings.
Understanding the 5 15P Plug

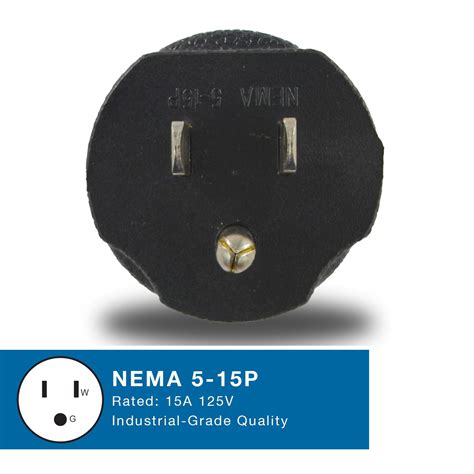

The 5 15P plug is characterized by its three-prong design, which includes two flat prongs and one round grounding prong. This configuration is essential for grounding, which helps protect against electrical shocks and fires. The flat prongs are designed to fit into the corresponding slots of a standard 15-amp outlet, ensuring a secure connection.
Applications of the 5 15P Plug
The 5 15P plug is widely used in a variety of settings, including:
- Residential Settings: Commonly found in household appliances such as lamps, televisions, and computers.
- Commercial Settings: Used in office equipment like printers, copiers, and computers.
- Industrial Settings: Utilized in machinery and equipment that require a reliable power source.
Its versatility makes it a staple in many electrical applications, ensuring that devices receive the necessary power while maintaining safety standards.
Safety Features of the 5 15P Plug
The 5 15P plug is designed with several safety features to protect users and equipment:
- Grounding: The round grounding prong ensures that any electrical faults are safely directed to the ground, preventing shocks.
- Insulation: The plug is typically made of durable materials that provide insulation, reducing the risk of electrical hazards.
- Secure Connection: The design of the flat prongs ensures a tight fit in the outlet, minimizing the risk of loose connections.
These features make the 5 15P plug a reliable choice for various electrical needs.
Installation and Maintenance of the 5 15P Plug
Proper installation and maintenance of the 5 15P plug are crucial for ensuring its longevity and safety. Here are some steps to follow:
Installation Steps
1. Turn Off Power: Before installing the plug, ensure that the power is turned off at the circuit breaker to avoid any electrical hazards.
2. Prepare the Wires: Strip the insulation from the ends of the wires to expose the copper conductors. Typically, the wires will include a black (hot), white (neutral), and green or bare (ground) wire.
3. Connect the Wires: Attach the wires to the corresponding terminals on the plug. The black wire goes to the brass terminal, the white wire to the silver terminal, and the green or bare wire to the green terminal.
4. Secure the Wires: Tighten the screws to secure the wires in place. Ensure that the connections are tight and that there are no loose wires.
5. Reassemble the Plug: Replace the plug cover and ensure it is securely fastened.
6. Test the Connection: Turn the power back on and test the device to ensure it is functioning correctly.
🔧 Note: Always follow the manufacturer's instructions for specific installation guidelines.
Maintenance Tips
Regular maintenance of the 5 15P plug can extend its lifespan and ensure safe operation. Here are some tips:
- Inspect Regularly: Check the plug for any signs of wear, such as frayed wires or damaged insulation.
- Clean the Plug: Use a dry cloth to clean the plug and remove any dust or debris that may accumulate.
- Tighten Connections: Periodically check the wire connections and tighten them if necessary.
- Replace When Necessary: If the plug shows significant wear or damage, replace it immediately to avoid potential hazards.
By following these maintenance tips, you can ensure that your 5 15P plug remains in good condition and continues to provide a safe and reliable connection.
Common Issues with the 5 15P Plug
Despite its reliability, the 5 15P plug can encounter issues that may affect its performance. Some common problems include:
- Loose Connections: Over time, the wires may become loose, leading to intermittent power supply or sparks.
- Damaged Insulation: Frayed or damaged insulation can expose the wires, increasing the risk of electrical shocks.
- Corrosion: Moisture or environmental factors can cause corrosion on the plug's terminals, affecting its conductivity.
Addressing these issues promptly can prevent more significant problems and ensure the safety of your electrical connections.
Troubleshooting the 5 15P Plug
If you encounter issues with your 5 15P plug, here are some troubleshooting steps to help identify and resolve the problem:
Step-by-Step Troubleshooting
1. Check for Loose Connections: Inspect the plug and ensure that all wire connections are secure. Tighten any loose screws.
2. Inspect the Wires: Look for any signs of fraying or damage to the insulation. If the wires are damaged, replace the plug.
3. Clean the Plug: Use a dry cloth to clean the plug and remove any dust or debris that may be affecting its performance.
4. Test the Outlet: Ensure that the outlet itself is functioning correctly by testing it with another device.
5. Replace the Plug: If the plug shows significant wear or damage, replace it with a new one.
🛠️ Note: If you are unsure about any of these steps, consult a professional electrician to avoid potential hazards.
Comparing the 5 15P Plug to Other Plug Types
The 5 15P plug is just one of many types of electrical plugs available. Understanding the differences between various plug types can help you choose the right one for your needs. Here is a comparison of the 5 15P plug with other common plug types:
| Plug Type | Voltage | Amperage | Prongs | Common Uses |
|---|---|---|---|---|
| 5 15P Plug | 125V | 15A | 3 | Household appliances, office equipment |
| 5 20P Plug | 125V | 20A | 3 | High-power appliances, industrial equipment |
| NEMA 6 15P Plug | 250V | 15A | 3 | High-voltage appliances, industrial machinery |
| NEMA 6 20P Plug | 250V | 20A | 3 | High-voltage, high-power appliances |
Each plug type has its specific applications and advantages, making it essential to choose the right one based on your electrical needs.
Conclusion
The 5 15P plug is a versatile and reliable component in the world of electrical connections. Its three-prong design, safety features, and wide range of applications make it a staple in both residential and commercial settings. By understanding its installation, maintenance, and troubleshooting, you can ensure that your 5 15P plug provides a safe and efficient power supply for your devices. Regular inspection and prompt addressing of any issues will help extend the lifespan of your plug and maintain its performance. Whether you are using it for household appliances or industrial equipment, the 5 15P plug remains a trusted choice for reliable electrical connections.
